Explorer Yacht – 110′ Motor Yacht

110′ Explorer Yacht

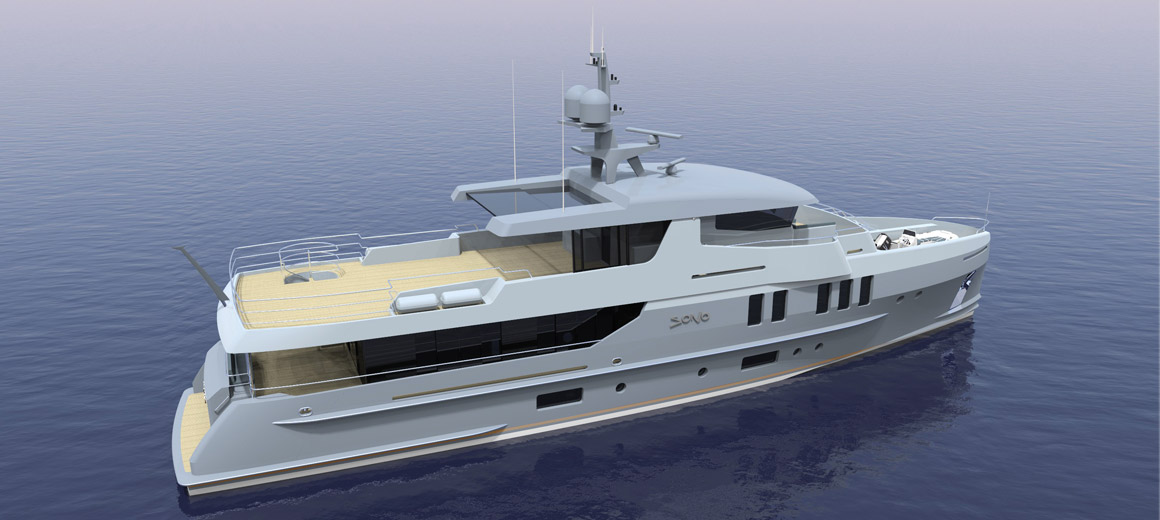

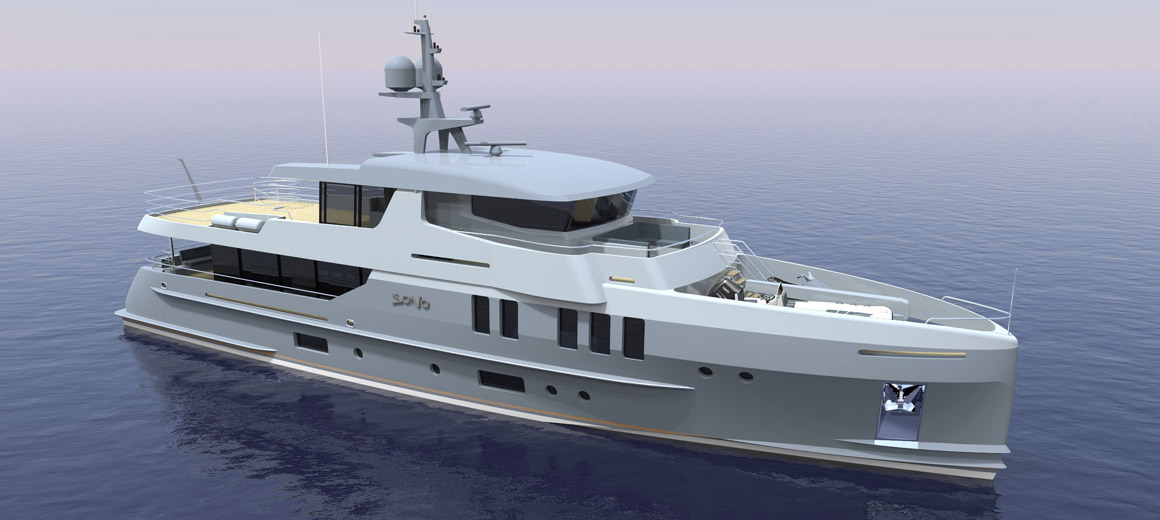

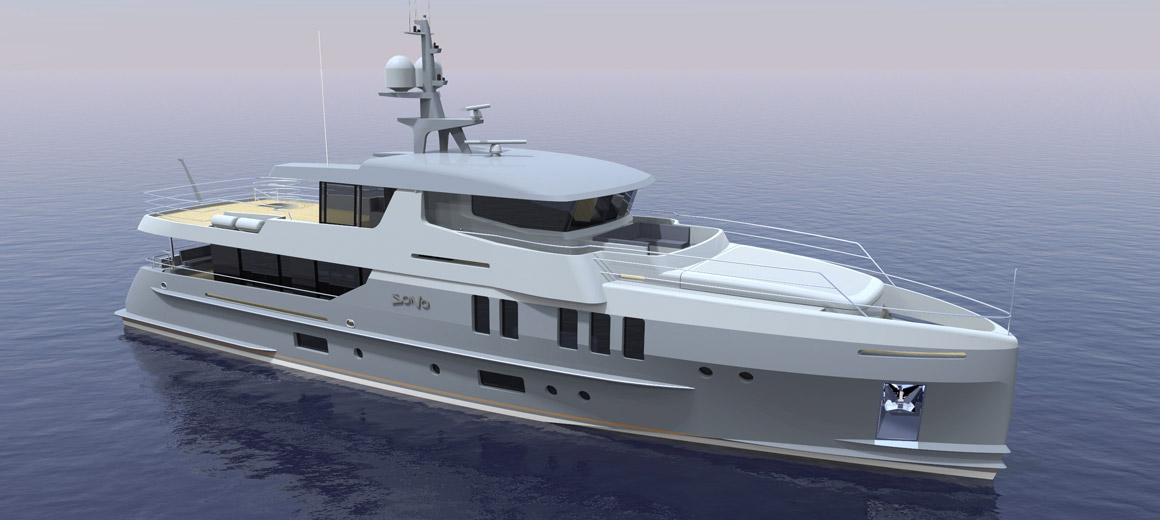

A reasonable and elegant 110′ Explorer Yacht

This desirable concept promises economic construction and operation.


This snug, boldly handsome all-weather cruiser is ideal for today’s economy-minded families. She was conceived to assure fun, pleasure, and low building and running costs. She is based on a less-costly steel hull, with each living space made as versatile as possible, and without cumbersome features and over-sophisticated technology that savvy owners find unnecessary and expensive. All this is done without sacrificing quality or comfort.

On typical three-deck, flying-bridge yachts of this size, guests usually spend most time in the skylounge, reserving the saloon for less frequent formal use and dining. Here the saloon, with up to five sliding doors, can be opened in fine weather as a real skylounge, or closed for cosy gatherings or dining. Forward, separated by the galley, day head, and central stairway, a spacious full-width owners’ suite, with private entrance, offers maximum privacy.

Abaft the wheelhouse owners have a combined flying bridge with an alternate skylounge. Forward it’s wrapped—above and on two sides—by sliding glass panels that can be closed for protection or opened wide to the fresh air. (Eliminating a separate flying bridge saves weight aloft to enhance stability, allowing the beam to be kept moderate, further saving construction cost and improving hydrodynamic efficiency for fuel saving.)

On most yachts, tenders and toys are stowed (or wedged!) on the flying bridge deck, usually ruining the view, or in the lazarette, requiring costly hydraulic devices to assure water tightness and regulation compliance. The cruiser has a spacious foredeck with high bulwarks to stow them, with a crane to handle them. Built-in covered stowage is a foredeck option.

The four guest cabins, set midships for easy motion, also have flexibility. The two cabins forward can be combined into a large VIP suite with sitting room. One after cabin can shift between double or twin-berth arrangement. An efficient crew area is forward.

With longitudinal framing, the steel hull is relatively inexpensive to build and maintain, and is easily repaired anywhere, even in low-tech facilities. The superstructure are in aluminium and, the interior styling can be customized to suit client’s needs and taste. The hull is shaped for comfortable speeds up to 18 knots.

Specifications

Boat Name Explorer yacht 110′
Type Explorer Motor yacht
Naval Architect René Van Der Velden
Interior Designer To be defined
Material Steelk hull & Aluminium superstrucure
Length Over All 33 m
Water Line Lenght 32,80 m
Beam 6,8 m
Draft 2 m
Displacement 195 T
Owner and guest capacity 10 persons
Crew capacity 6 persons
Engine 2x 714 Hp Cat
Top speed – cruise speed 14 kts – 12 kts

Drawings

Explorer yacht 110' - Van Der VeldenExplorer yacht 110' - Van Der Velden
Explorer yacht 110' - Lower deckExplorer yacht 110' - Lower deck
Explorer yacht 110' - Main deckExplorer yacht 110' - Main deck
Explorer yacht 110' - Upper deckExplorer yacht 110' - Upper deck
  • profile
  • lower deck
  • main deck
  • upper deck
