Power Trimaran – 108′ Motor Yacht

A 108′ Power trimaran

This 32M Shuttleworth concept redefines long distance voyaging yachts of this size range. Her rugged ‘explorer’ style exterior maximises interior volume to provide spacious and comfortable accommodation whilst still maintaining unrivalled seakeeping, stability and efficiency.

Powered by a single 1150hp C18 caterpillar engine with an additional 110hp  engine in each outrigger for manoeuvring and back up propulsion, she has a top speed of 21 knots and a range at 12 knots in excess of 6,000nm. Using state of the art composite engineering we have achieved the light weight structure required for exceptional fuel efficiency and performance, as well as the strength and rigidity suitable for heavy weather ocean capability. Ocean voyages can be undertaken with confidence, at high speed and in comfort, allowing you to go anywhere, anytime.


Boat Name MY 108′ Power Triamaran
Type Power trimaran
Naval Architect Shuttelworth Design
Interior Designer Shuttelworth Design
Material Composite Kevlar/carbon epoxy
Length Over All 32,90 m
Water Line Lenght 32 m
Beam 11,7 m
Draft 1,4 m
Airdraft 9,5 m
Displacement 32 T
Owner and guest capacity 4 persons
Crew capacity 2 persons
Engine 1x 2 1150 Hp Cat + 2x 110 Hp
Genest 2x 19 kW Onan
Top speed – cruise speed 23 kts – 12 kts
Range 6 000 nm at 12 kts

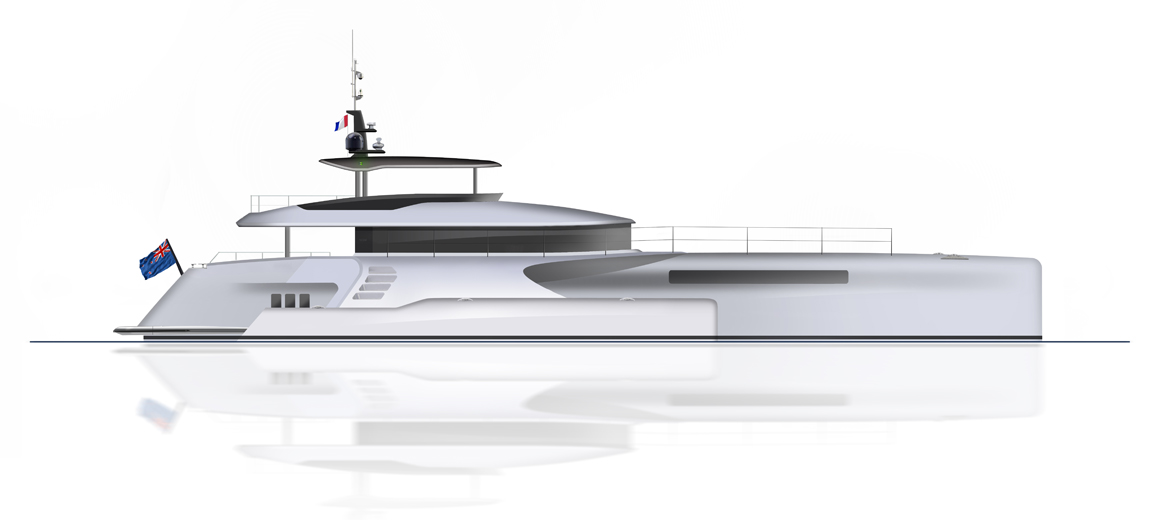

  • Profile
  • Lower deck
  • Main deck
  • Flybridge
