MY 135 – 135′ Motor Yacht

This ship offers 5 guest cabins located on the lower deck (3 double cabins, 2 twin cabins). The owners’ suite is placed on the main deck and stretches across the entire beam of the boat. 15 large windows provide exceptional natural light to this space which encompasses 80 square metres.  The suite includes the owners’ cabin, 2 bathrooms, a large dressing room and a private office, sitting room.



Specifications

Boat name  MY 135′ Global Explorer
Yard n° 25C
Year of delivery 2017
Type Twin screw motor yacht
Naval architect Jon Overing
Interior designer Michael Kirschstein
Material Steel hull & Aluminium superstructure
Length Over All 41 m
Water Line Lenght 35,9 m
Beam 8,75 m
Draft 2,4 m
Airdraft 15,2 m
Displacement 305 tons full load
Owner and guest capacity 12 pers
Crew capacity 6 pers
Engine 2 x 1 100 Hp Caterpillar
Genest 2 x 55 kW Northern lights
Top speed / Cruise speed 14 kts – 12,5 kts
Range 7 000 nm at 10 kts

Drawings

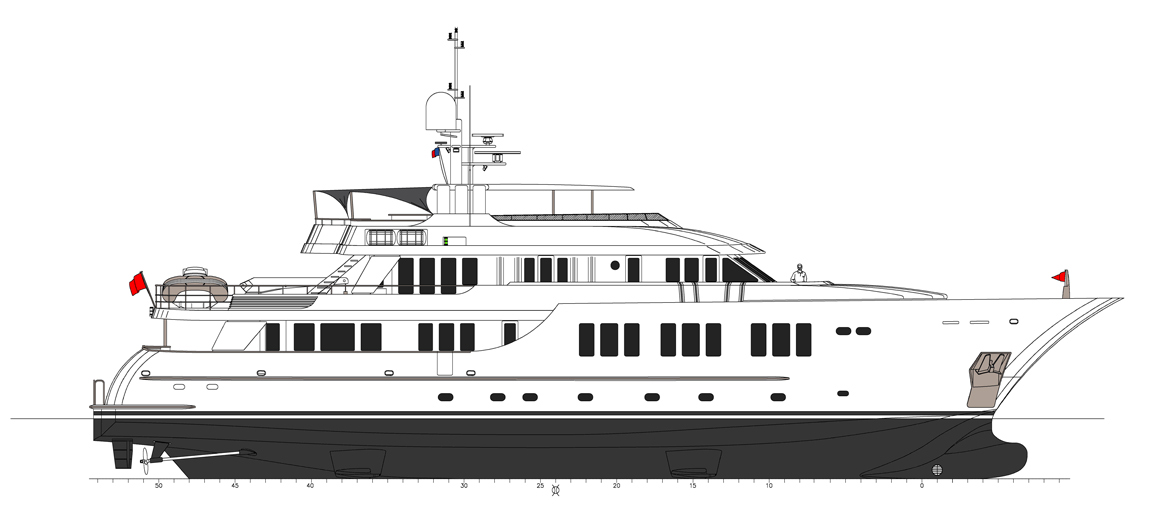

  • profile

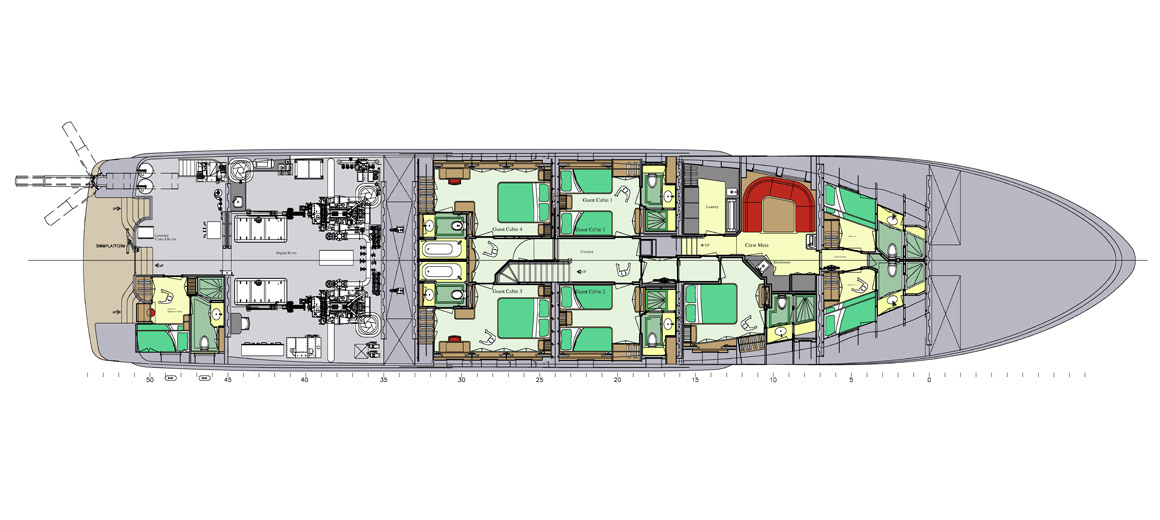

  • Lower deck

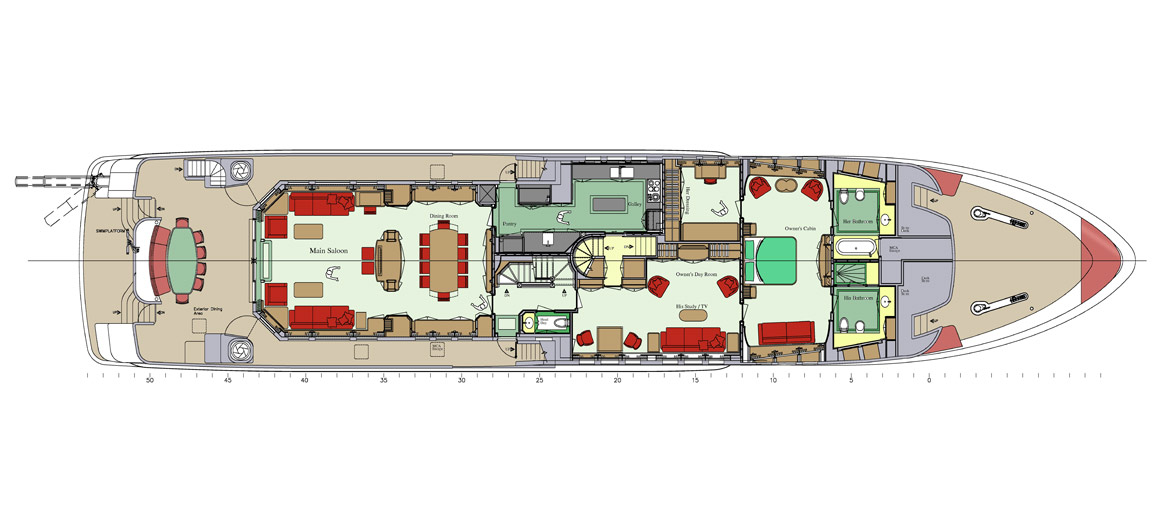

  • Main deck

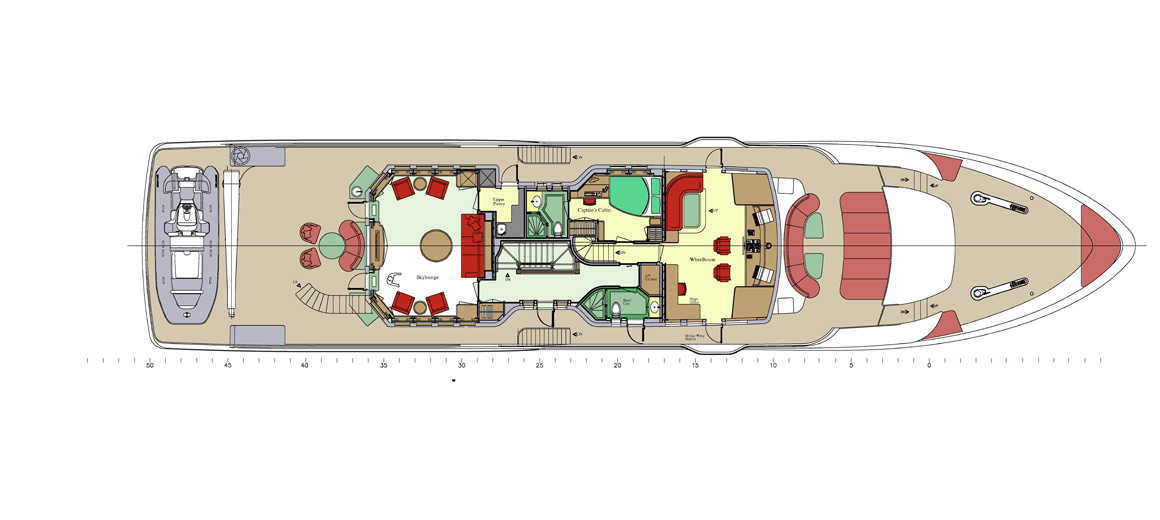

  • Upper deck

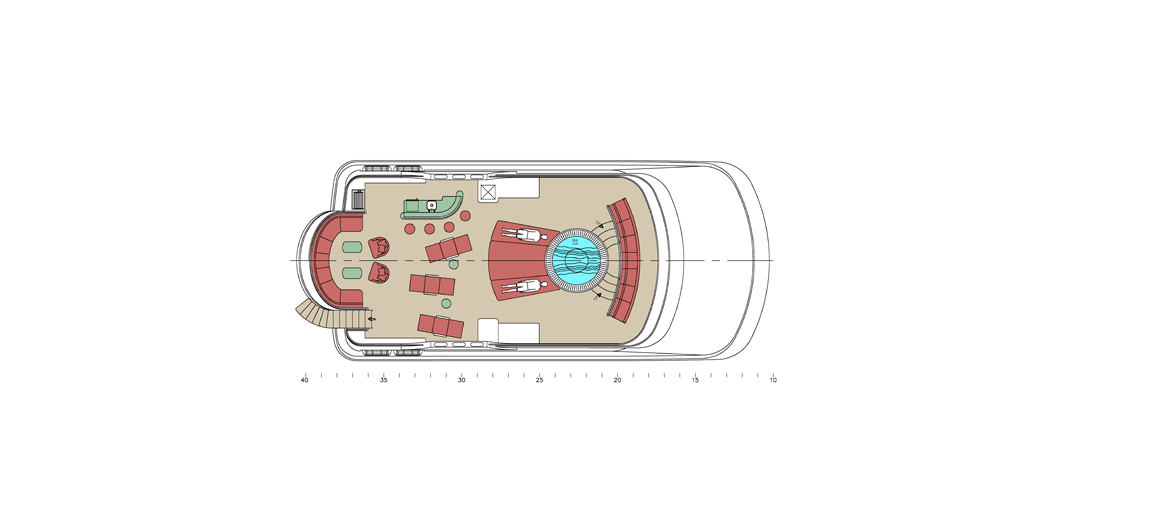

  • Flybridge
